空压机

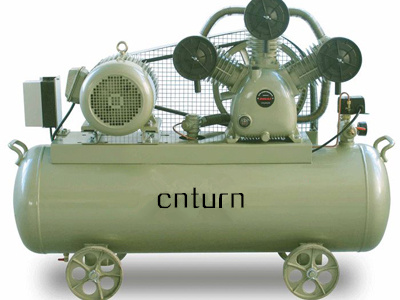

纯劲风冷移动式活塞机
详细描述
| 型号 | 电机 | 气缸 | 排气量 | 额定压力 | 储气量 | 外型尺寸 | 重量 | ||
| KW | HP | 缸径X缸数mm | 行程mm | ㎥/min | MPa | L | L×W×H（cm） | KG | |
| 单 级 风 冷 移 动 式 系 列 空 气 压 缩 机 ONE-STAGE ALR-COOLED MOTLBLE AIR COMPRESSOR | |||||||||
| Z-0.036/8 | 0.75 | 1.0 | 51×1 | 38 | 0.036 | 0.8 | 24 | 70×41×62 | 38.5 |
| V-0.08/8 | 1.1 | 1.5 | 51×2 | 43 | 0.08 | 0.8 | 35 | 94×45×69 | 66 |
| Z-0.10/8 | 1.5 | 2.0 | 65×1 | 46 | 0.10 | 0.8 | 35 | 77×43×69 | 69.5 |
| V-0.12/8 | 1.5 | 2.0 | 51×2 | 44 | 0.12 | 0.8 | 40 | 94×45×69 | 72.5 |
| V-0.17/8 | 1.5 | 2.0 | 51×2 | 46 | 0.17 | 0.8 | 60 | 99×46×76 | 83 |
| V-0.25/8 | 2.2 | 3.0 | 65×2 | 46 | 0.25 | 0.8 | 100 | 115×48×86 | 106.5 |
| W-0.36/8 | 3.0 | 4.0 | 65×3 | 48 | 0.36 | 0.8 | 110 | 120×48×85 | 123 |
| V-0.40/8 | 3.0 | 4.0 | 80×2 | 60 | 0.40 | 0.8 | 125 | 122×48×82 | 180 |
| V-0.48/8 | 4.0 | 5.5 | 90×2 | 60 | 0.48 | 0.8 | 125 | 142×54×93 | 183 |
| W-0.67/8 | 5.5 | 7.5 | 80×3 | 70 | 0.67 | 0.8 | 135 | 151×58×96 | 214 |
| W-0.9/8 | 7.5 | 10 | 90×3 | 70 | 0.9 | 0.8 | 190 | 160×59×100 | 256 |
| V-0.95/8 | 5.5 | 7.5 | 100×2 | 80 | 0.95 | 0.8 | 250 | 160×76×115 | 260 |
| W-1.25/8 | 7.5 | 10 | 100×3 | 80 | 1.25 | 0.8 | 250 | 168×76×122 | 370 |
| W-1.5/8 | 11 | 15 | 100×3 | 100 | 1.5 | 0.8 | 270 | 178×76×122 | 430 |
| W-2.0/8 | 15 | 20 | 120×3 | 100 | 2.0 | 0.8 | 340 | 188×82×139 | 540 |
| W-3.0/10 | 22 | 30 | 155×3 | 100 | 3.0 | 1.0 | 520 | 192×80×150 | 950 |
| W-1.5/5 | 柴油机 | 12 | 90×3 | 70 | 1.5 | 0.5 | 200 | 178×76×122 | 430 |
| W-2.0/5 | 柴油机 | 15 | 100×3 | 80 | 2.0 | 0.5 | 260 | 188×82×139 | 540 |
| 两 级 风 冷 移 动 式 系 列 空 气 压 缩 机 TWO-STAGE AIR-COOLED MOTIBLE AIR COMPPRESSOR | |||||||||
| V-015/12.5 | 1.5 | 2.0 | 65×1/51×1 | 46 | 0.15 | 1.25 | 50 | 98×45×78 | 87 |
| V-0.20/12.5 | 2.2 | 3.0 | 65×1/51×1 | 46 | 0.2 | 1.25 | 60 | 99×48×78 | 101 |
| W-0.30/12.5 | 3.0 | 4.0 | 65×2/51×1 | 48 | 0.3 | 1.25 | 110 | 120×48×85 | 134 |
| W-0.40/12.5 | 4.0 | 5.5 | 90×1/61×1 | 60 | 0.4 | 1.25 | 125 | 142×54×94 | 189 |
| W-0.60/12.5 | 5.5 | 7.5 | 80×2/65×1 | 70 | 0.60 | 1.25 | 135 | 151×58×96 | 222 |
| W-0.80/12.5 | 7.5 | 10 | 90×2/80×1 | 70 | 0.80 | 1.25 | 190 | 160×69×100 | 262 |
| W-1.1/12.5 | 11 | 15 | 100×2/90×1 | 100 | 1.1 | 1.25 | 290 | 178×76×123 | 430 |
| W-1.5/12.5 | 15 | 20 | 120×2/100×1 | 100 | 1.5 | 1.25 | 340 | 188×82×136 | 560 |
